IMx-8
IMx-16
IMx-16
WIRED & WIRELESS LTE
ONLINE MONITORING SYSTEM
ONLINE MONITORING SYSTEM
Online Vibration
Measurement System
Product descriptions
Low Cost, Compact Size
Configuring a outstanding facility diagnostic monitoring system
when using @ptitude Observer Software
System configuration (TCP/IP, LTE (P-LTE)) is possible through communication
methods and can be connected (Modbus RTU, Modbus TCP/IP, OPC) various
to other integrated systems (PLC or DCS)
Local system configuration or integrated configuration is possible
through the SKF Cloud system
Applicable to various industries
(oil refining, petrochemical, pharmaceutical, food, power plant, etc.)
Configuring a outstanding facility diagnostic monitoring system
when using @ptitude Observer Software
System configuration (TCP/IP, LTE (P-LTE)) is possible through communication
methods and can be connected (Modbus RTU, Modbus TCP/IP, OPC) various
to other integrated systems (PLC or DCS)
Local system configuration or integrated configuration is possible
through the SKF Cloud system
Applicable to various industries
(oil refining, petrochemical, pharmaceutical, food, power plant, etc.)
Product characteristics
Channel configuration: Analogue: 8ch, Digital: 2ch
DC ~ 40 kHz Frequency Range, 100 ~ 6,400 lines of resolution
Dynamic Range : 120dB, 24bit Data Conversion
Power Input: Use of 24Vdc ~ 48Vdc or PoE power (power redundancy is possible)
Signal Input : ICP Accelerometers, Voltage signals, 4~20mA Signals,
PT1000Ω (IMx-8 PLUS)
Communication: TCP/IP (LAN), LTE (or P-LTE)
Seamless data transfer (large-capacity memory is embedded):
Even if communication with a PC is cut off, data for one month is saved,
and data is transmitted when communication is restored.
DC ~ 40 kHz Frequency Range, 100 ~ 6,400 lines of resolution
Dynamic Range : 120dB, 24bit Data Conversion
Power Input: Use of 24Vdc ~ 48Vdc or PoE power (power redundancy is possible)
Signal Input : ICP Accelerometers, Voltage signals, 4~20mA Signals,
PT1000Ω (IMx-8 PLUS)
Communication: TCP/IP (LAN), LTE (or P-LTE)
Seamless data transfer (large-capacity memory is embedded):
Even if communication with a PC is cut off, data for one month is saved,
and data is transmitted when communication is restored.
Product descriptions
Low Cost, Compact Size
Configuring an excellent facility diagnostic monitoring system
when using @ptitude Observer Software
System configuration (TCP/IP, LTE (P-LTE)) is possible through various
communication methods and can be connected (Modbus RTU, Modbus TCP/IP, OPC)
to other integrated systems (PLC or DCS)
Local system configuration or integrated configuration
is possible through SKF Cloud system
Applicable to various industries (oil refining, petrochemical, pharmaceutical, food, power plant, etc.)
Configuring an excellent facility diagnostic monitoring system
when using @ptitude Observer Software
System configuration (TCP/IP, LTE (P-LTE)) is possible through various
communication methods and can be connected (Modbus RTU, Modbus TCP/IP, OPC)
to other integrated systems (PLC or DCS)
Local system configuration or integrated configuration
is possible through SKF Cloud system
Applicable to various industries (oil refining, petrochemical, pharmaceutical, food, power plant, etc.)
Product characteristics
Channel configuration: Analogue: 16ch, Digital: 4ch
DC ~ 40 kHz Frequency Range, 100 ~ 6,400 lines of resolution
Dynamic Range : 120dB, 24bit Data Conversion
Power Input: Use of 24Vdc ~ 48Vdc or PoE power (power redundancy is possible)
Signal Input : ICP Accelerometers, Voltage signals, 4~20mA Signals,
PT1000Ω (IMx-16 PLUS)
Communication: TCP/IP (LAN), LTE (or P-LTE)
Seamless data transfer (large-capacity memory is embedded):
Even if communication with a PC is cut off, data for one month is saved,
and data is transmitted when communication is restored
DC ~ 40 kHz Frequency Range, 100 ~ 6,400 lines of resolution
Dynamic Range : 120dB, 24bit Data Conversion
Power Input: Use of 24Vdc ~ 48Vdc or PoE power (power redundancy is possible)
Signal Input : ICP Accelerometers, Voltage signals, 4~20mA Signals,
PT1000Ω (IMx-16 PLUS)
Communication: TCP/IP (LAN), LTE (or P-LTE)
Seamless data transfer (large-capacity memory is embedded):
Even if communication with a PC is cut off, data for one month is saved,
and data is transmitted when communication is restored
Product descriptions
SKF @ptitude Observer is a vibration analysis and diagnosis program for online data.
Providing users with excellent equipment diagnostic functions
and an intuitive interface for convenient use
Providing all the information and features needed
to set up and run an online monitoring system
Equipment monitoring, early detection of defects,
and optimal equipment stability and reliability
Providing users with excellent equipment diagnostic functions
and an intuitive interface for convenient use
Providing all the information and features needed
to set up and run an online monitoring system
Equipment monitoring, early detection of defects,
and optimal equipment stability and reliability
Product characteristics
Trend management of various vibration data
(vibration velocity, acceleration, acceleration enveloping, displacement, temperature, etc.)
Automatic alarm level and automatic diagnosis function (Protean function)
Protean function:
automatic alarm level and automatic diagnosis function (European patent technology)
Effective diagnostic functions such as FFT Spectrum, Time waveform, Orbit, Polar, Bode, etc.
Implementation of a factory and facility layout with process overview function
Effective diagnosis is possible through automatic calculation
of equipment defect frequency and AI-based automatic diagnosis solution
Displaying various analysis screens on one screen (Trend, Time, FFT, etc.)
Sharing data with other programs or platforms
(vibration velocity, acceleration, acceleration enveloping, displacement, temperature, etc.)
Automatic alarm level and automatic diagnosis function (Protean function)
Protean function:
automatic alarm level and automatic diagnosis function (European patent technology)
Effective diagnostic functions such as FFT Spectrum, Time waveform, Orbit, Polar, Bode, etc.
Implementation of a factory and facility layout with process overview function
Effective diagnosis is possible through automatic calculation
of equipment defect frequency and AI-based automatic diagnosis solution
Displaying various analysis screens on one screen (Trend, Time, FFT, etc.)
Sharing data with other programs or platforms
WIRED ONLINE MONITORING SYSTEM
System introduction
Industrial sites around the world are facing the era of Smart Factory due to Industrial 4.0, which has a great impact on the domestic device industry as well.
In line with this, SKF Online Monitoring System detects and analyzes potential mechanical failures of facilities at an early stage.
In doing so, it provides an optimal system that can increase productivity by reducing the shutdown time and maintenance costs of your equipment.
In line with this, SKF Online Monitoring System detects and analyzes potential mechanical failures of facilities at an early stage.
In doing so, it provides an optimal system that can increase productivity by reducing the shutdown time and maintenance costs of your equipment.
System characteristics
Convenient linkage with an integrated platform (Machine Learning) for building Smart Factory System
Automatic diagnosis service for constant speed and variable equipment
Convenient link function with DCS and PLC System
Various equipment defect analyses (Unbalance, Misalignment, Bearing, Gear, Looseness, Resonance, Belt, etc.)
Systems Engineer, Analytical Engineer Support Services
Automatic diagnosis service for constant speed and variable equipment
Convenient link function with DCS and PLC System
Various equipment defect analyses (Unbalance, Misalignment, Bearing, Gear, Looseness, Resonance, Belt, etc.)
Systems Engineer, Analytical Engineer Support Services
SEMI-WIRELESS MONITORING SYSTEM
System introduction
A solution that can solve the shortcomings of the existing wired system, such as cable work, cost, and safety issues.
A solution that can solve problems such as security and signal interference of other wireless systems (Wifi, etc.)
A solution that can solve problems such as security and signal interference of other wireless systems (Wifi, etc.)
System characteristics
Transmission of the same data signal as the wired system (Possessing many performance records)
Cost savings led by time savings in construction and system building
Comparison of advantages and disadvantages by communication type
Cost savings led by time savings in construction and system building
Comparison of advantages and disadvantages by communication type
| Cable | Existing wireless (wi-fi, WirelessHART, etc.) | LTE | |
|---|---|---|---|
| Advantages | Stable operation and verification completed | Reduction of operation and management costs | an on-the-spot inspection of LTE communication completed Excellent stability and security Enhanced security by using VPN (optional) Professional network management of telecommunication companies(verification completed) Wireless network conversion is possible for In-house data (loT) |
| Disadvantages | High cost due to cable work, etc. Safety issues and overuse of working hours Errors can occur during cable short-circuit repair and relocation |
Security maintenance issues (private method - professional network management X) Signal interference due to geographical features and obstaclesOutput limit Battery capacity limit (seasonal influence, rapid battery consumption during FFT transmission) |
Communication costs incurred (Cost reduction is possible when contracting for a data communication network) |

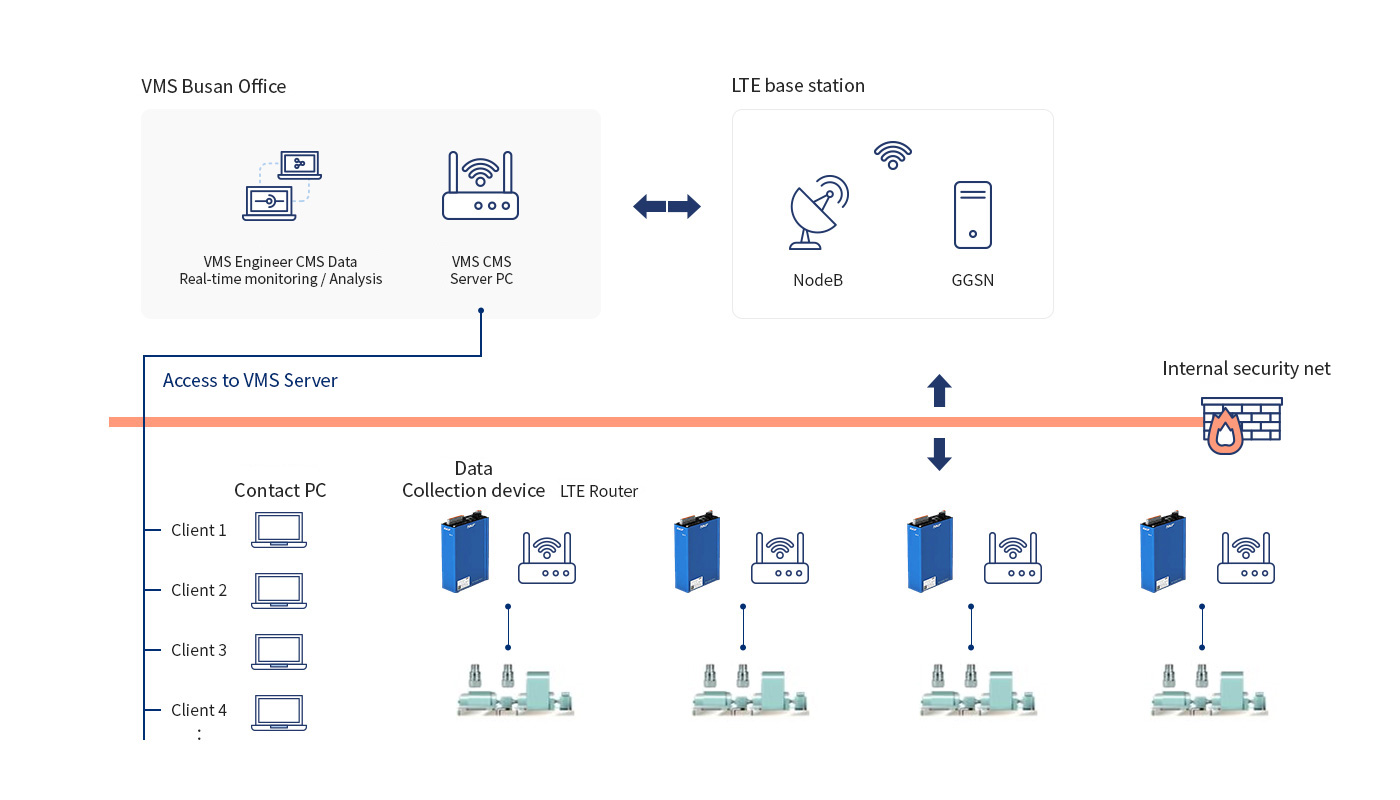

System Configuration(LTE or P-LTE)

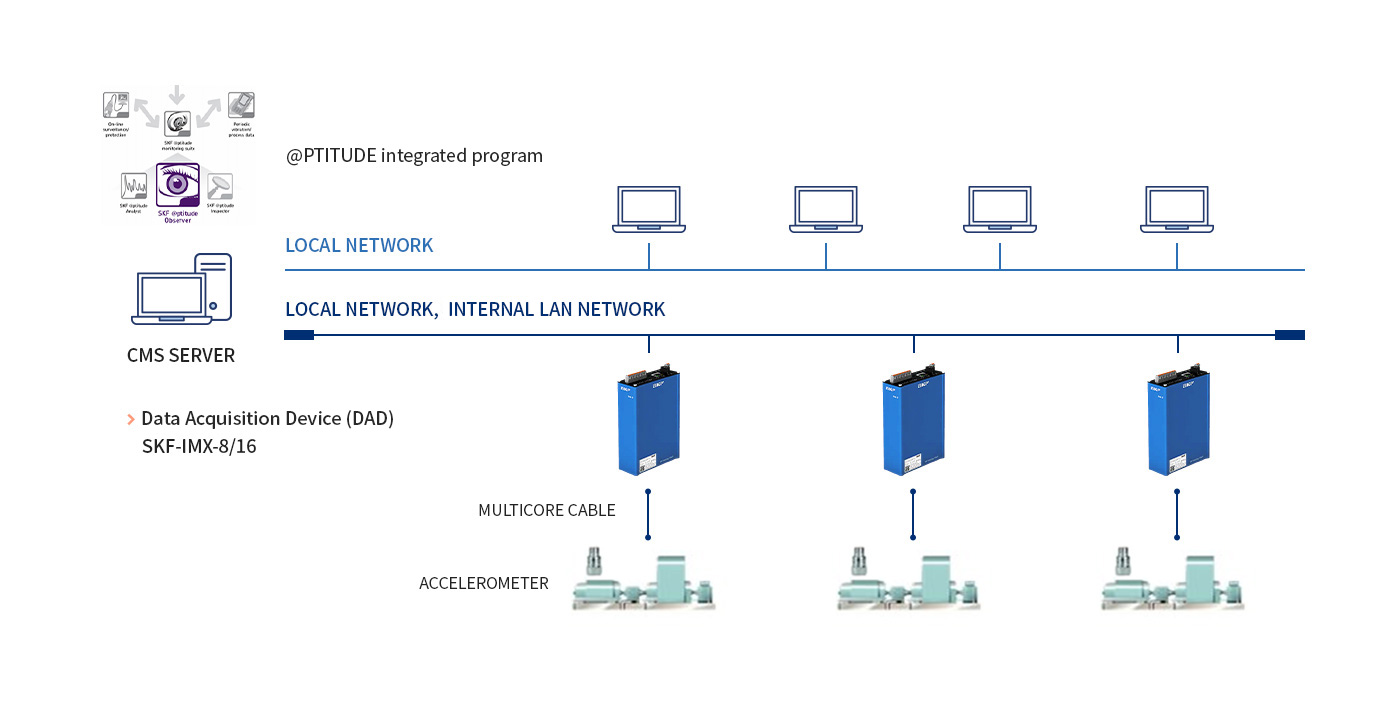

System Configuration(Wired)
