Laser Alignment
Measurement System
Product descriptions
A leader in the easiest and most intuitive laser measurement system that anyone can use
By combining the components required for measurement as needed, it is possible to align the equipment with the optimal system customized for the site.
Most cost-effective, with reports available immediately upon measurement for faster and more reliable inspections
By combining the components required for measurement as needed, it is possible to align the equipment with the optimal system customized for the site.
Most cost-effective, with reports available immediately upon measurement for faster and more reliable inspections
Product characteristics
Possible to measure from various angles, possible to measure not only the axis but also the belt and geometry.
Applicable to various industries
(chemical, power generation and heat generation, film and plastic, paper and pulp, machine tools, etc.)
More than 25 years of know-how in solving measurement problems in industrial facilities
Supporting the training for equipment use
Applicable to various industries
(chemical, power generation and heat generation, film and plastic, paper and pulp, machine tools, etc.)
More than 25 years of know-how in solving measurement problems in industrial facilities
Supporting the training for equipment use

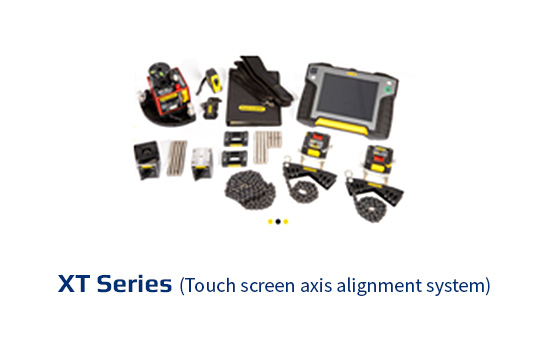

XT440 (Touch screen entry-level axis alignment system)
Product descriptions
An innovative cross-platform-based axis alignment product that is
entry-level but has accumulated the latest cutting-edge technology
Equipped with wireless measuring unit, dual laser system, and 10-axis sensor
entry-level but has accumulated the latest cutting-edge technology
Equipped with wireless measuring unit, dual laser system, and 10-axis sensor
Product characteristics
0.001mm precision
Able to measure distances between axes of up to 10 meters
Display Unit
Able to measure distances between axes of up to 10 meters
Display Unit
1) Dedicated Display Unit: Equipped with a thermal imaging camera
2) Mobile App: Smartphone, Tablet PC can be used
XT190 BTA (Digital Belt Alignment System)
Product descriptions
The XT190 BTA is a Bluetooth wireless director product with a built-in OLED display.
It is possible to check the belt adjustment value
in real-time as a digitized numerical value.
When linking with a free app for iOS/Android or an EasyLaser display unit,
you can easily check the adjustment value in real-time during the alignment process.
Also, you can save the measurement results
on a mobile device and make documents.
It is possible to check the belt adjustment value
in real-time as a digitized numerical value.
When linking with a free app for iOS/Android or an EasyLaser display unit,
you can easily check the adjustment value in real-time during the alignment process.
Also, you can save the measurement results
on a mobile device and make documents.
Product characteristics
Align the sheave/pulley accurately and effectively
Real-time display of digitized offset and angle values
Real-time work is possible through a free smartphone app
Automatically generate PDF reports
Real-time display of digitized offset and angle values
Real-time work is possible through a free smartphone app
Automatically generate PDF reports
XT770 (Touch screen top-notch axis alignment system)
Product descriptions
A product that contains all sorts of sorting work.
Sorting is possible by freely using various portable devices
Equipped with wireless measuring unit, dual laser system
and 2-axis collimating axis sensor, and 20-axis moving axis sensor
Geometric measurements can be made using the D22 transmitter
Sorting is possible by freely using various portable devices
Equipped with wireless measuring unit, dual laser system
and 2-axis collimating axis sensor, and 20-axis moving axis sensor
Geometric measurements can be made using the D22 transmitter
Product characteristics
0.001mm precision
Able to measure axle distances up to 20 meters
Supporting easy Trend function
Also possible to align the axis of equipment with a step difference
Display Unit
Able to measure axle distances up to 20 meters
Supporting easy Trend function
Also possible to align the axis of equipment with a step difference
Display Unit
1) Dedicated Display Unit: Equipped with a thermal imaging camera
2) Mobile App: Smartphone, Tablet PC can be used
XT660 (touch screen intermediate axis alignment system)
Product descriptions
The latest cross-platform axial alignment product. Axis alignment is possible
by freely using various portable devices
Equipped with wireless measuring unit, dual laser system, and 10-axis sensor
Dot laser technology is applied to measure larger equipment and wider ranges
by freely using various portable devices
Equipped with wireless measuring unit, dual laser system, and 10-axis sensor
Dot laser technology is applied to measure larger equipment and wider ranges
Product characteristics
0.001mm precision
Able to measure axle distances up to 20 meters
Continuous sweep measurement function
Base flatness can be measured
Display Unit
Able to measure axle distances up to 20 meters
Continuous sweep measurement function
Base flatness can be measured
Display Unit
1) Dedicated Display Unit: Equipped with a thermal imaging camera
2) Mobile App: Smartphone, Tablet PC can be used

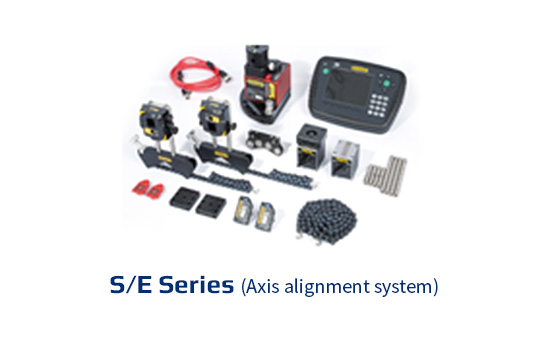

S810 (Ultra-high precision axis alignment system)
Product descriptions
Providing various functions to manage the equipment
in the best condition without any risk factors
Using a director with ultra-high precision of 0.0001mm,
it simply and efficiently performs axis alignment measurements
of high-speed rotating machines and extra-large motor equipment
in the best condition without any risk factors
Using a director with ultra-high precision of 0.0001mm,
it simply and efficiently performs axis alignment measurements
of high-speed rotating machines and extra-large motor equipment
Product characteristics
Ultra-high precision of 0.0001mm
Able to measure axle distances up to 20 meters
Dual laser system
A high-speed rotating body such as a dynamo can be applied
Able to measure axle distances up to 20 meters
Dual laser system
A high-speed rotating body such as a dynamo can be applied
E710 (Advanced axis alignment system)
Product descriptions
Providing various functions to manage the facility
in the best condition without any risk factors
Performing various measurements such as equipment base inspection,bearing
play inspection, vibration value inspection,soft foot inspection, and equipment
measurement and alignment, and immediately documenting the results
in the best condition without any risk factors
Performing various measurements such as equipment base inspection,bearing
play inspection, vibration value inspection,soft foot inspection, and equipment
measurement and alignment, and immediately documenting the results
Product characteristics
0.001mm precision
Able to measure axle distances up to 20 meters
Dual laser system
Equipped with 2-axis collimating axis sensor and 20-axis moving axis sensor
In addition to all alignment-related functions, straightness,
flatness, warpage, and parallelism can be measured (if the option is applied)
Able to measure axle distances up to 20 meters
Dual laser system
Equipped with 2-axis collimating axis sensor and 20-axis moving axis sensor
In addition to all alignment-related functions, straightness,
flatness, warpage, and parallelism can be measured (if the option is applied)
